A392 50x50mm heavy galvanized coating chain link fence
Model No.︰fence
Brand Name︰chain link fence
Country of Origin︰China
Unit Price︰US $ 8 / meter
Minimum Order︰1000 meter
Product Description
Chain link fence, also referred to as chain-wire fence, cyclone fence, hurricane fence, or diamond-mesh fence , is one of the most popular choices of fence for both light residential to heavy commercial fence applications. It is woven by a way that the wires run vertically and are bent into a zig-zag pattern so that each "zig" hooks with the wire immediately on one side and each "zag" with the wire immediately on the other. This forms the characteristic diamond pattern fence.
Chain link fence is most commonly available galvanized which is silver in color. Chain link fence fabric is typically produced in 50' rolls’ length(15.24m), and the most popular type is 6, 9, 11 gauge wire with 2x2 inches(50x50mm) mesh size, and it is ideal for industrial and commercial fence applications. The fabric is galvanized with a 1.2 oz.(366 grams) coating meets ASTM A 392-03 Class I and we also offer some sizes with a 2.0 oz.(610 grams) zinc coating meets ASTM A 392 Type I (Class II).
|
Nominal coated wire diameter |
Available variance |
Zinc coating weight, min. |
Breaking strength
|
|||||||
|
Class 1 |
Class 2 |
|||||||||
|
ga |
inch |
mm |
inch |
mm |
oz/ft2 |
g/m2 |
oz/ft2 |
g/m2 |
lbf |
Newtons |
|
6 |
0.192 |
4.88 |
+/- 0.005 |
+/-0.13 |
1.20 |
366 |
2.00 |
610 |
2,170 |
9,650 |
|
9 |
0.148 |
3.76 |
+/- 0.005 |
+/-0.13 |
1.20 |
366 |
2.00 |
610 |
1,290 |
5,740 |
|
11 |
0.120 |
3.05 |
+/- 0.005 |
+/-0.13 |
1.20 |
366 |
x |
x |
380 |
1,690 |
A typical specification list of 9 gauge chain link fence fabric
|
Chain Link Fence Fabric - 9 Gauge Residential and Commercial Galvanized |
|||
|
Fabric
|
Code |
Size
|
Ends |
|
CL-9X36-G |
2 x 9 x 36 |
KxK |
|
|
CL-9X42-G |
2 x 9 x 42 |
KxK |
|
|
CL-9X48-G |
2 x 9 x 48 |
KxK |
|
|
CL-9X60-G |
2 x 9 x 60 |
KxK |
|
|
CL-9X72-G |
2 x 9 x 72 |
KxB |
|
|
CL-9X84-G |
2 x 9 x 84 |
KxB |
|
|
CL-9X96-G |
2 x 9 x 96 |
KxB |
|
|
CL-9X120-G |
2 x 9 x 120 |
KxB |
|
|
CL-9X144-G |
2 x 9 x 144 |
KxB
|
|
Payment Terms︰ TT

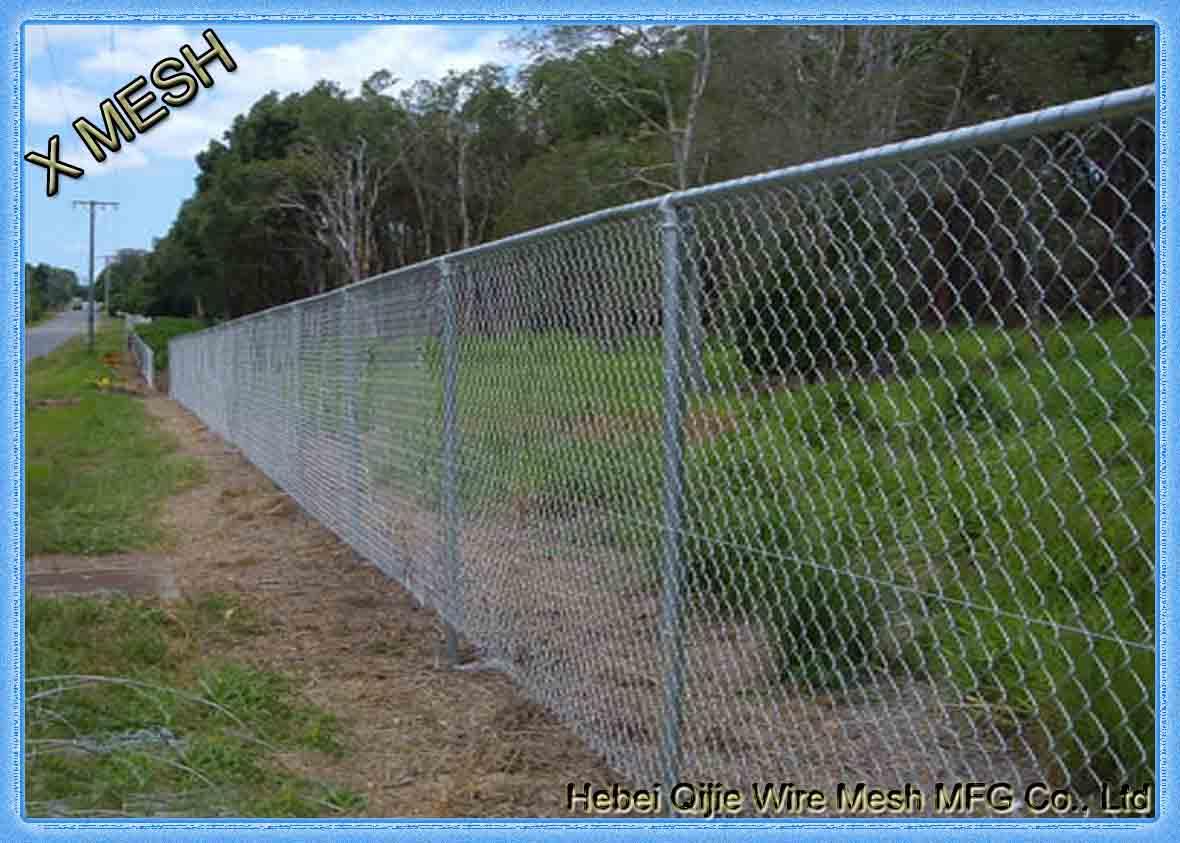

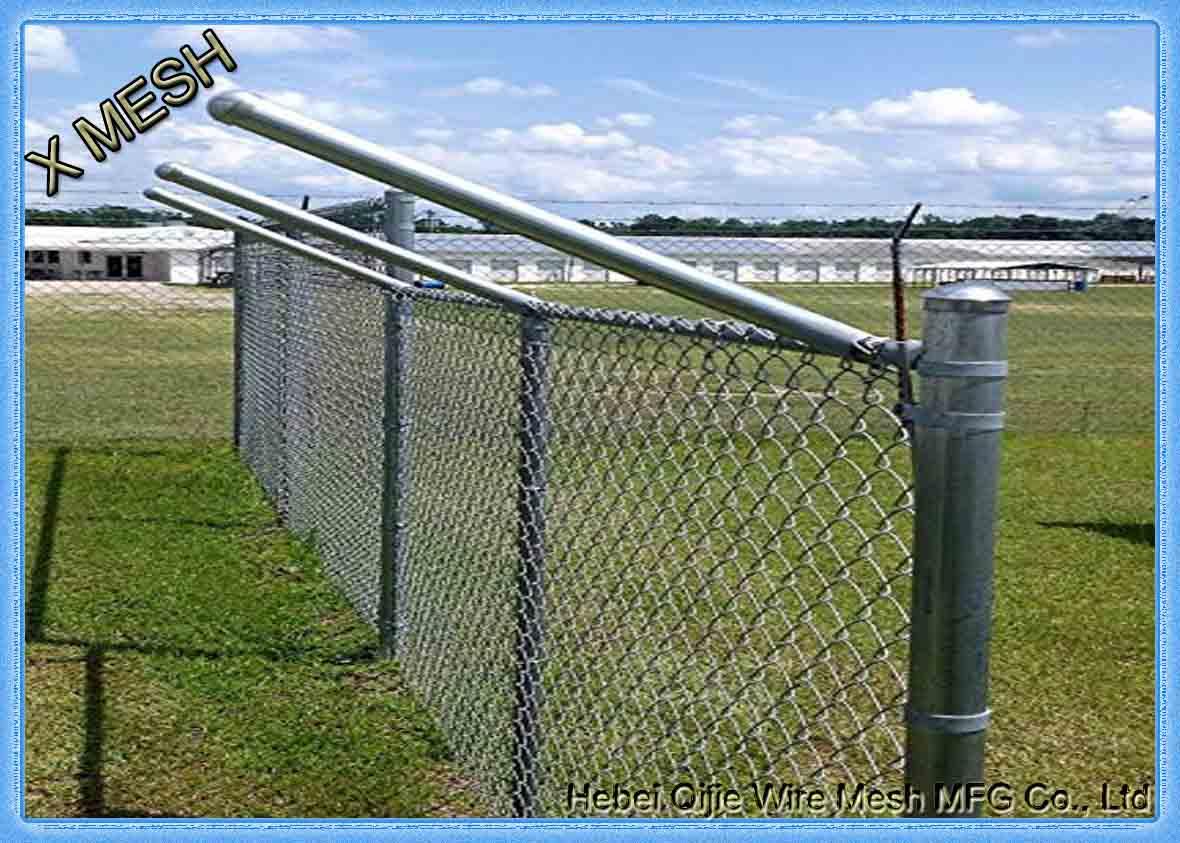

Product Image
